interspace
No depth, no framing, no drawings . . . no problem. Interspace is an impossibly thin, narrow aperture, recessed architectural lighting system designed to fit within the depth ⅝” of GWB sheetrock.
interspace
Never let walls stop you again. Ceiling-to-wall transitions give even greater continuity and enhanced design flexibility. Works with ACT grid-to-drywall too.
Aesthetically, it’s seamless—with a continuous diffuse lens that can be installed in lengths of up to 100 feet in 1” increments and powered from just a single power feed. The profile is so slim it eliminates the need for structural framing and site coordination.

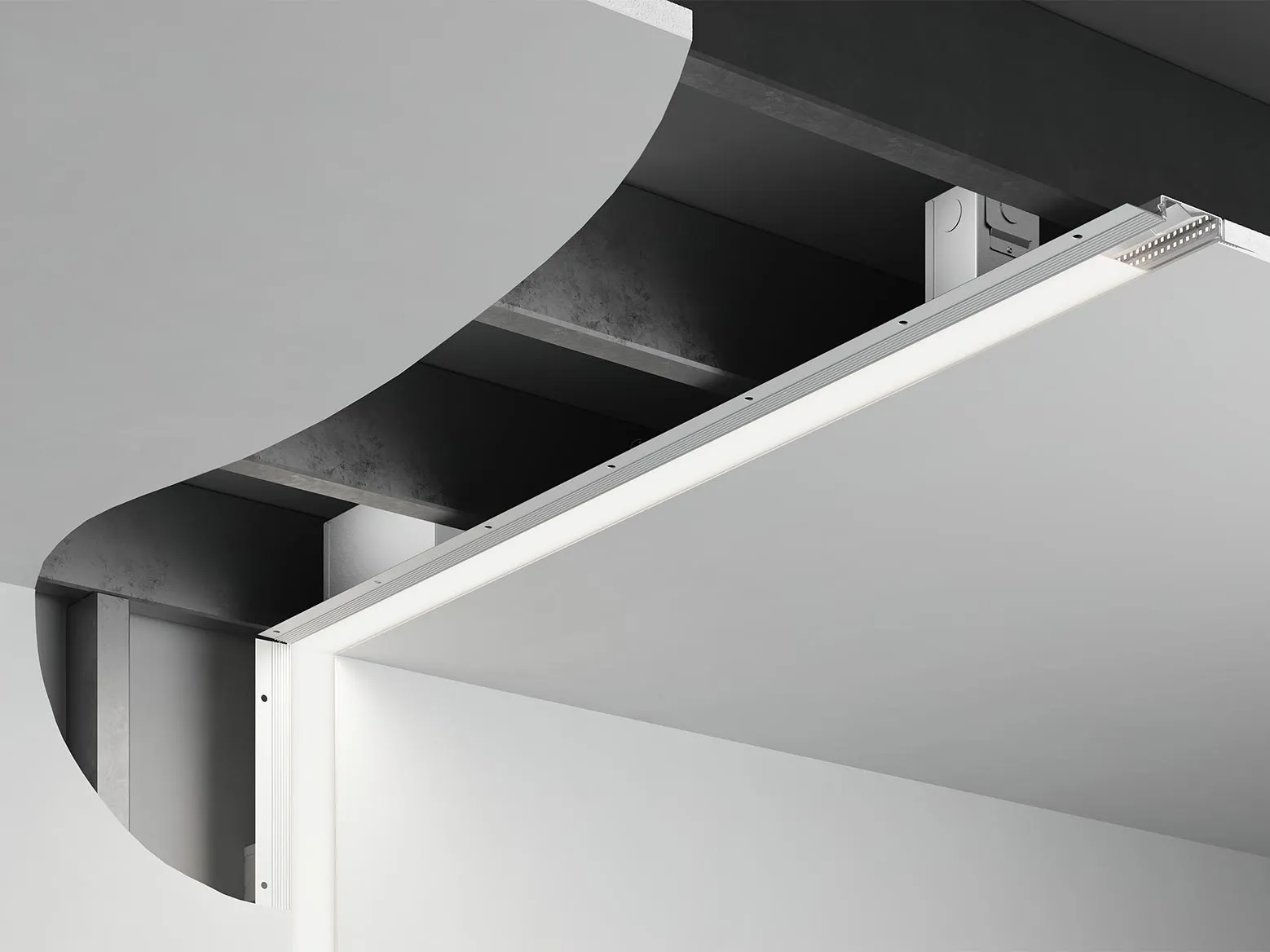

Slip right past problems. The ultra-thin and adaptable housing utilizes factory installed integral drivers and wiring systems designed to accommodate typical construction spacing of studs and joists. Repositionable drivers help navigate around interference of structural and mechanical systems during installation.

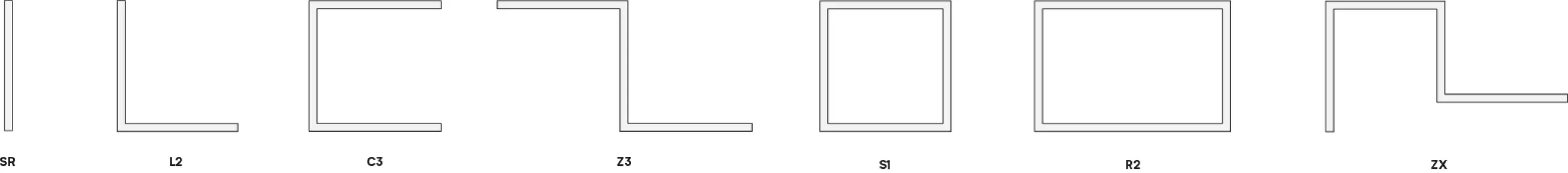

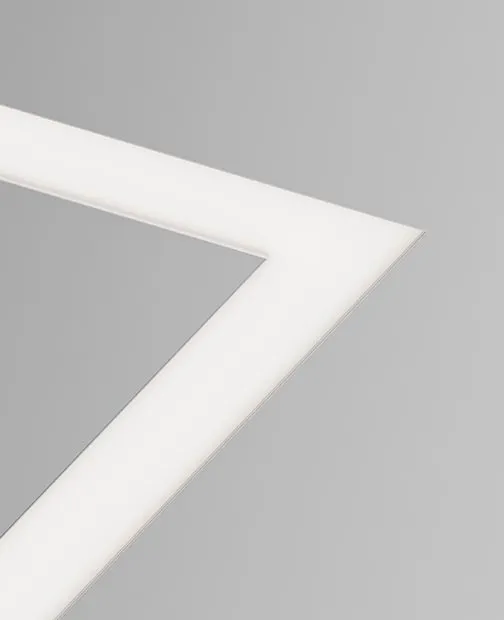

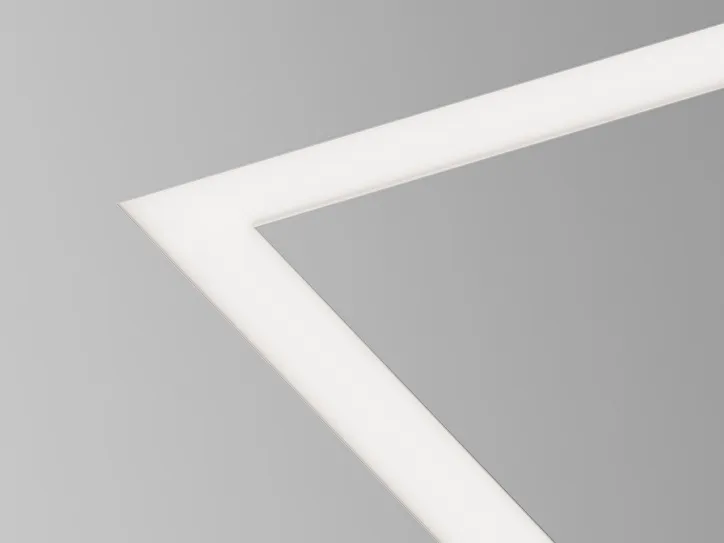

Well executed turns. Optional 90° corners get you around the room and back. At a compact six inches, make tight turns for all those open and closed patterns.
No depth, no framing, no drawings . . . no problem.

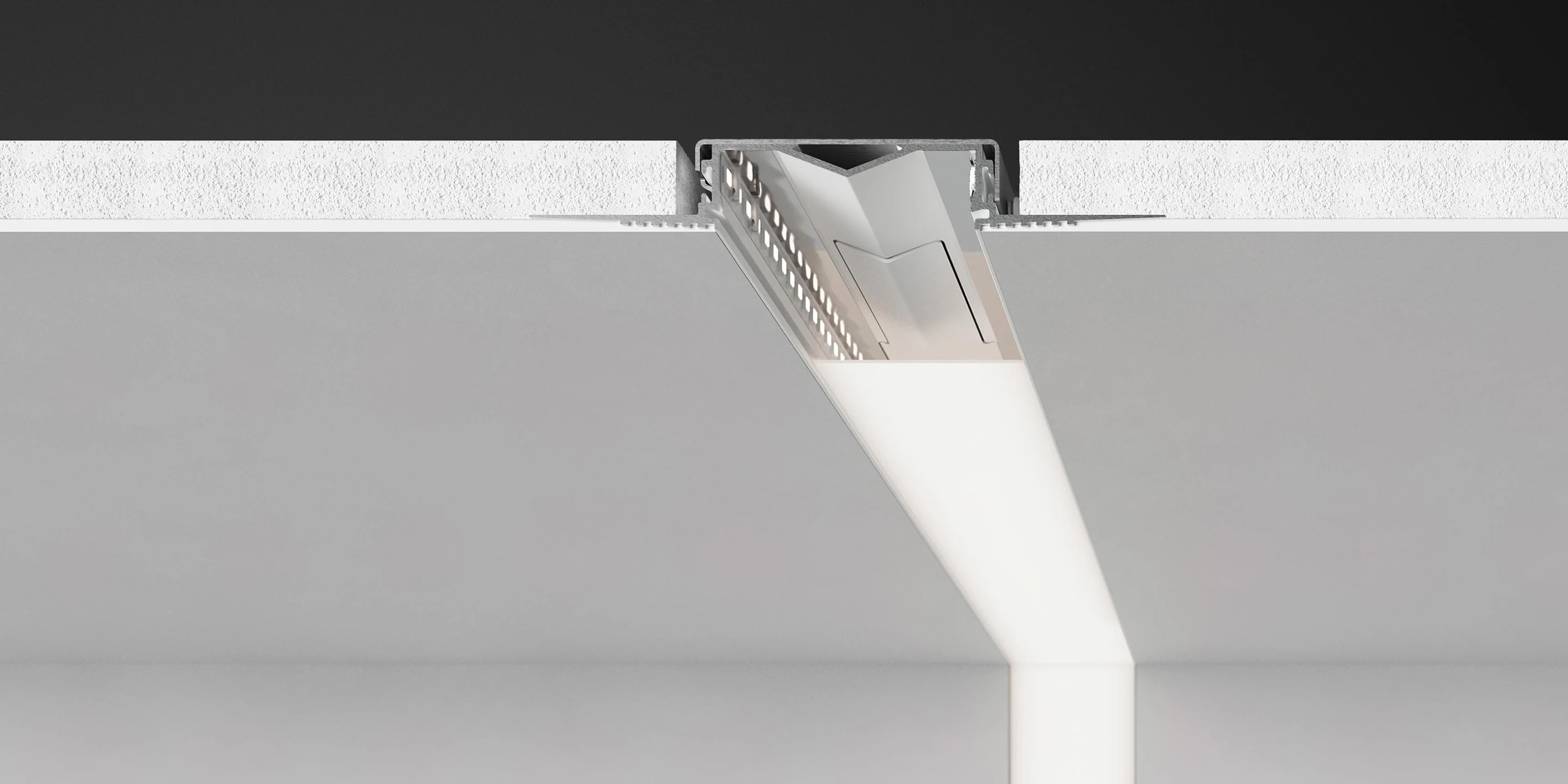

Integral drivers, multiple positions
Never worry about joist, stud and other obstructions with variable position integrated drivers—and they're even room-side serviceable through the fixture aperture.

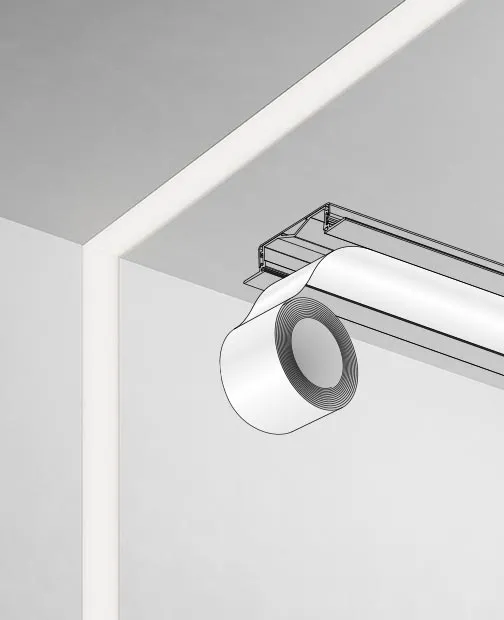

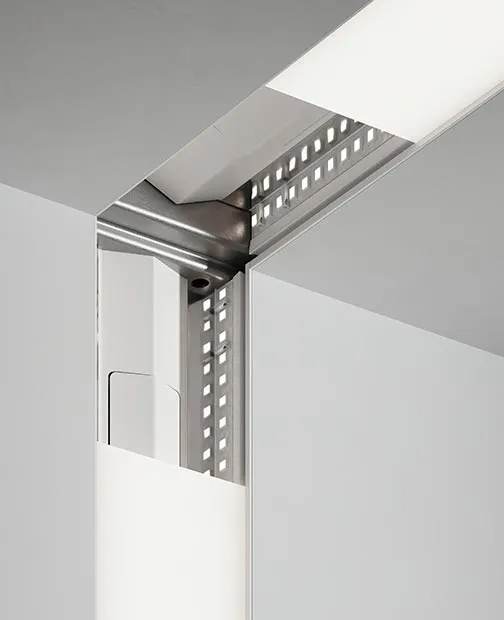

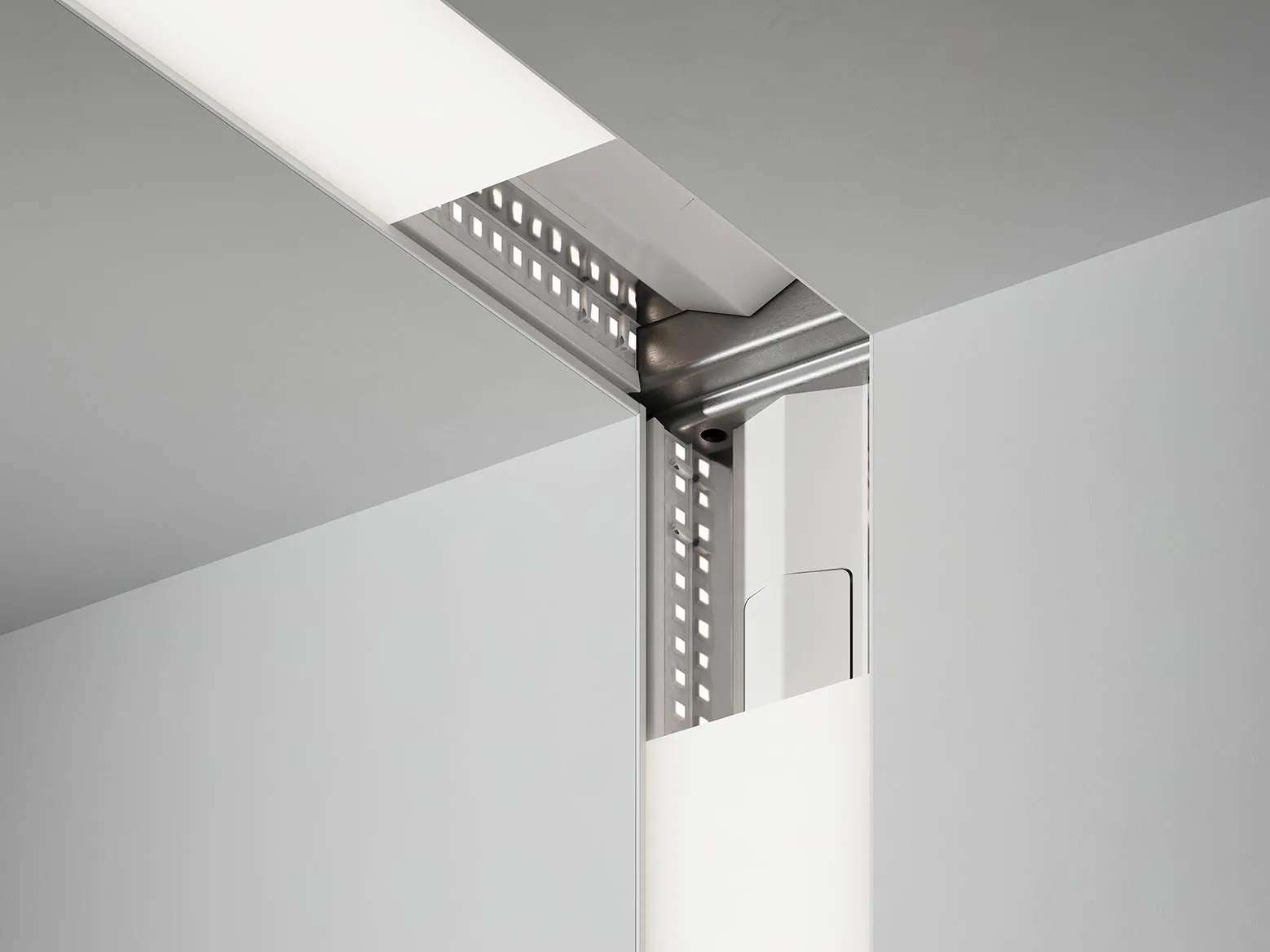

Universal Ceiling-to-Wall Mount
Goes where your design does

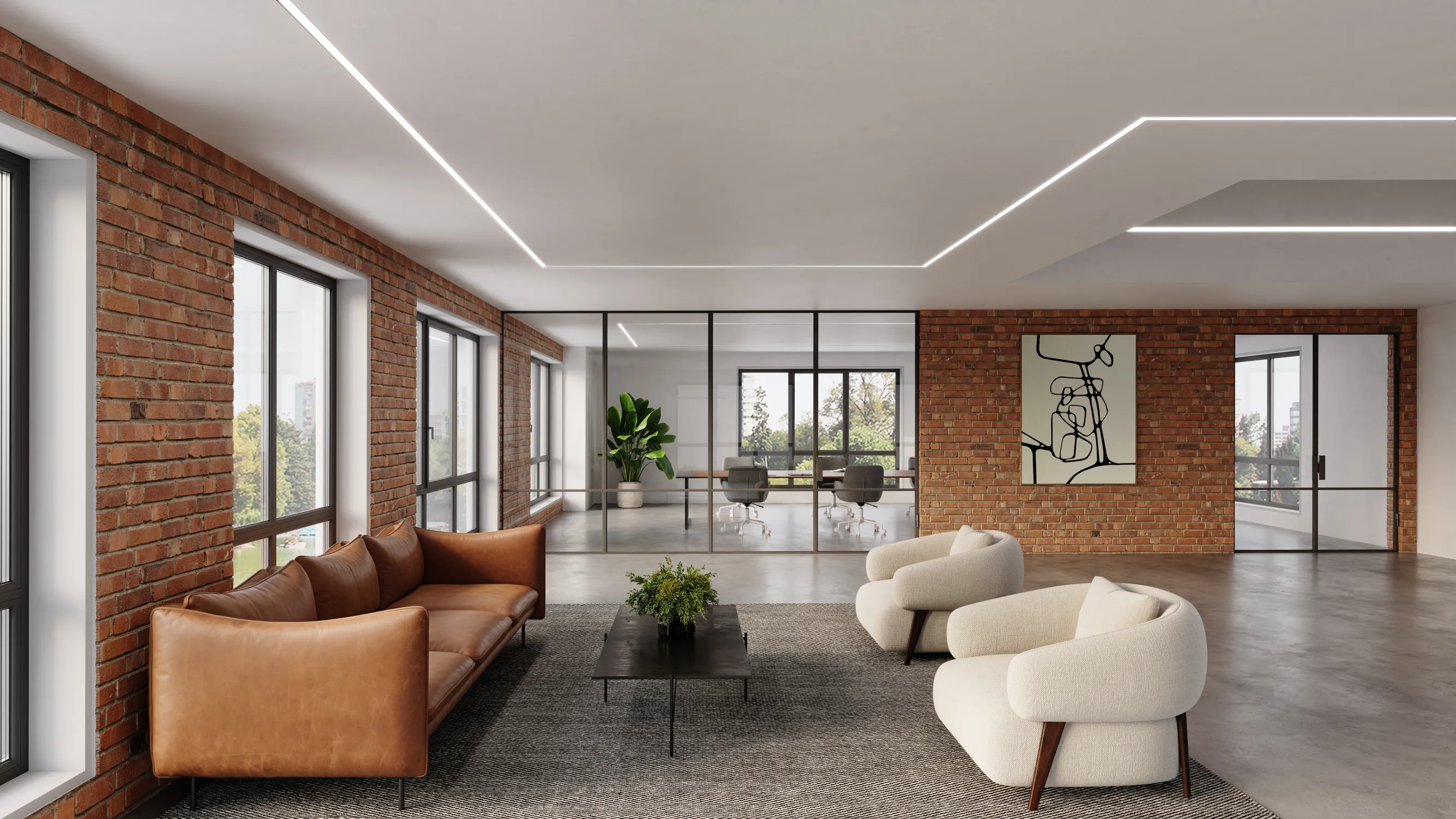

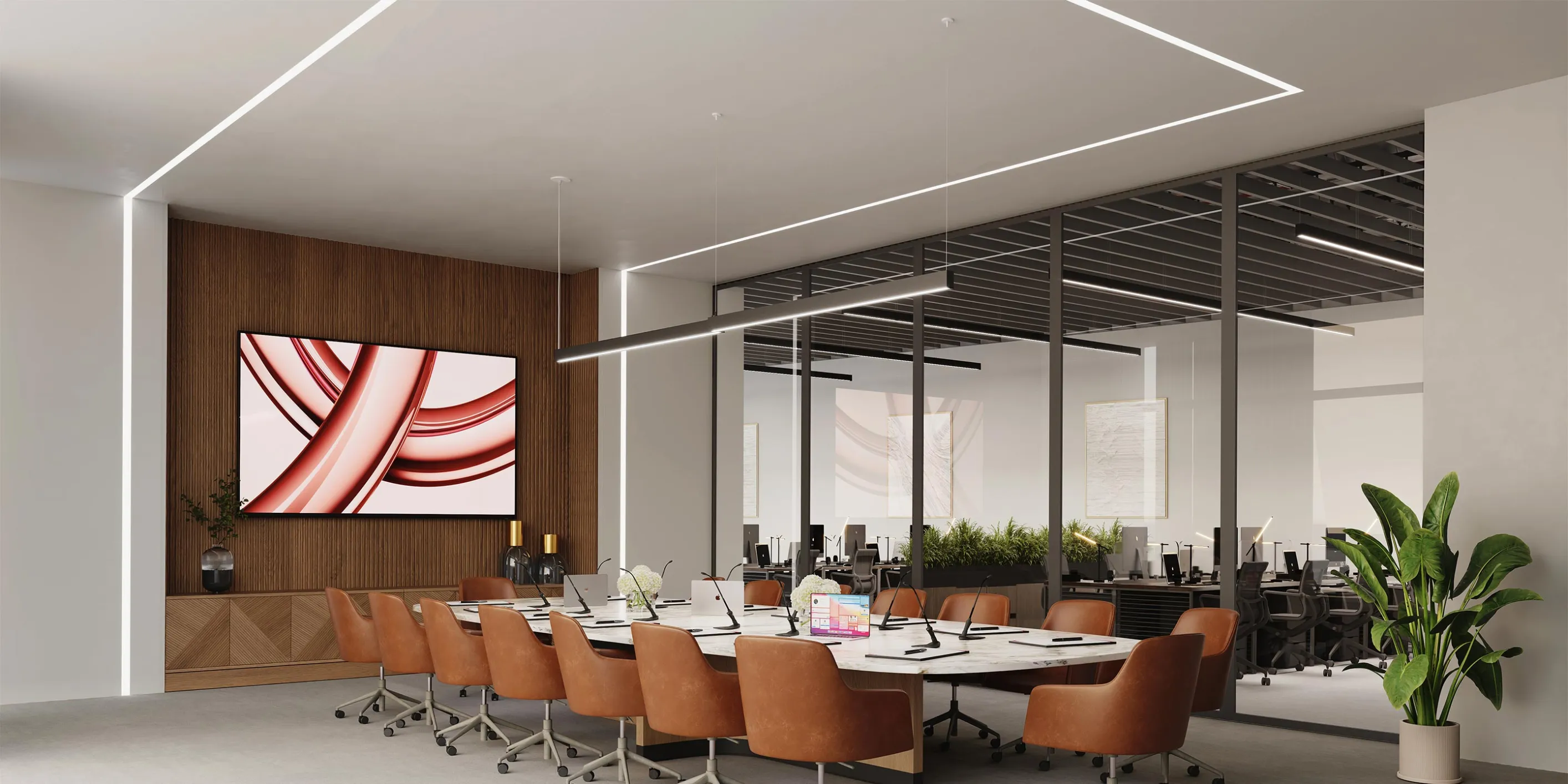

Turn left and right. Go horizontal and vertical. With a profile so slim, you can prioritize your path, not your planning.
Fits right in.

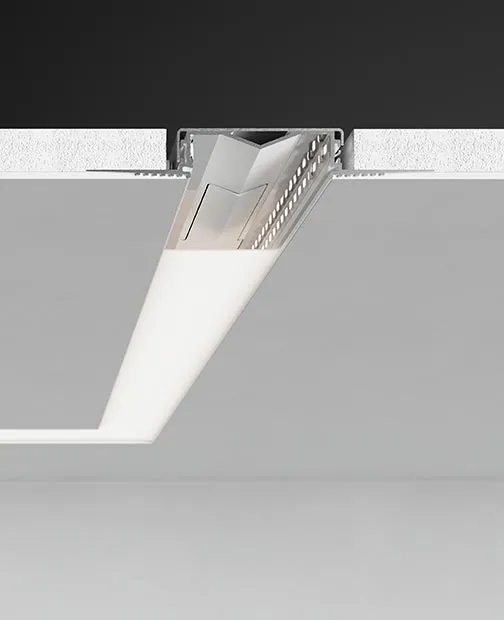

Interspace comes complete—no bags of parts or complicated on-site assembly. We've designed in all kinds of features to make it easy . . . Integral spring clips elimate unsightly trim gaps along the length of drywall installations. Integrated wiring harnesses and continuous lenses up to 100ft in 1 inch increments mean seamless lines of light. Drivers accessible from within the width of the aperture for simple service.

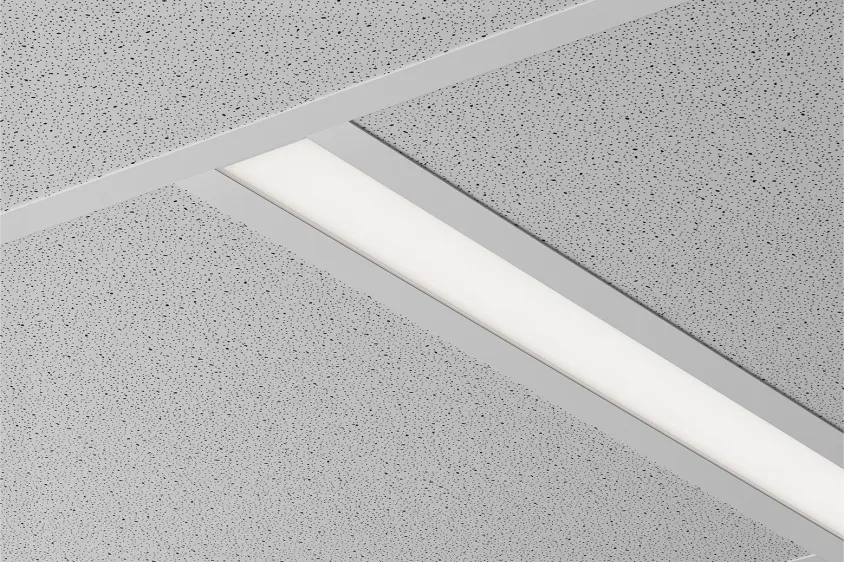

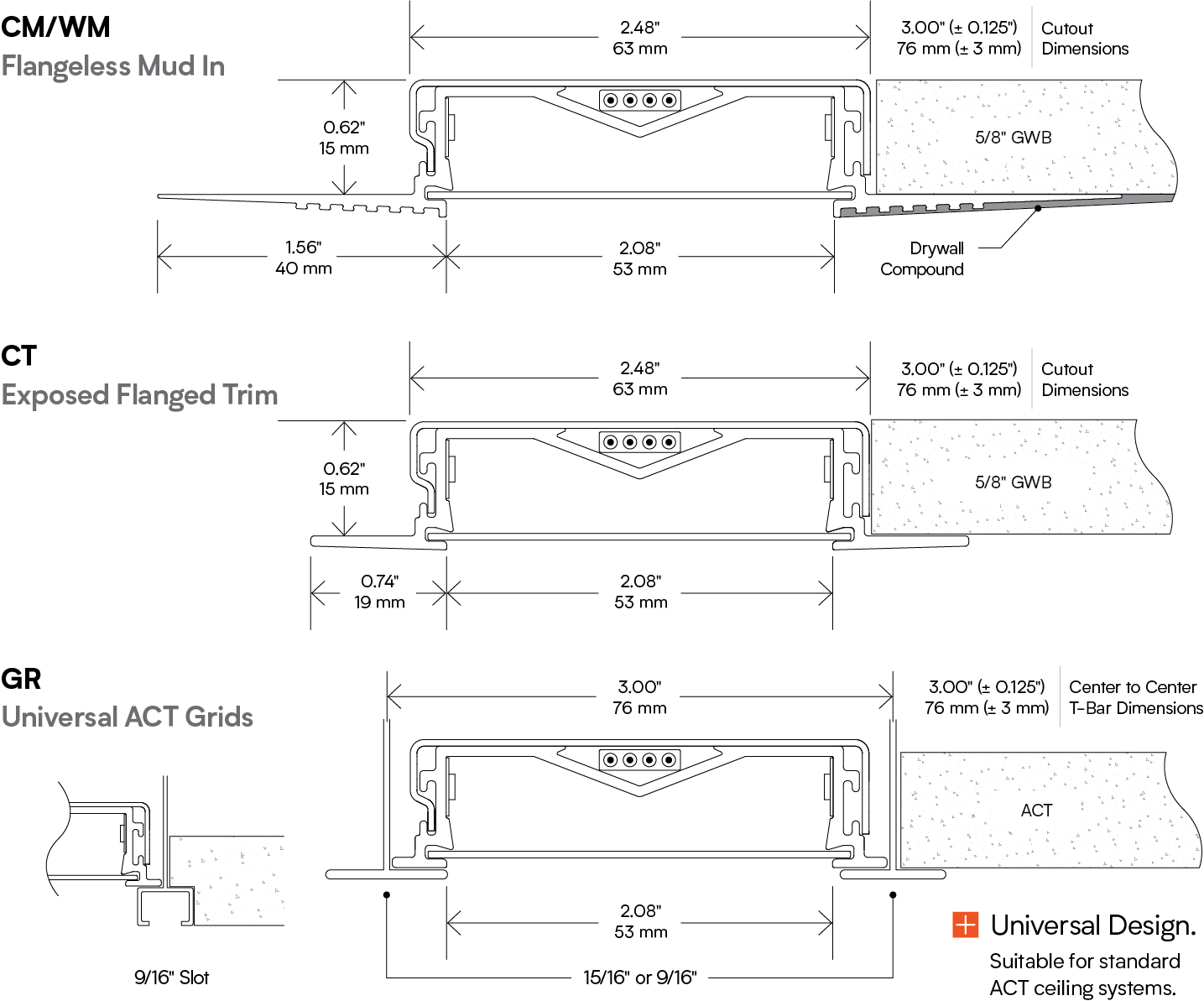

Universal T-Grid (GR)

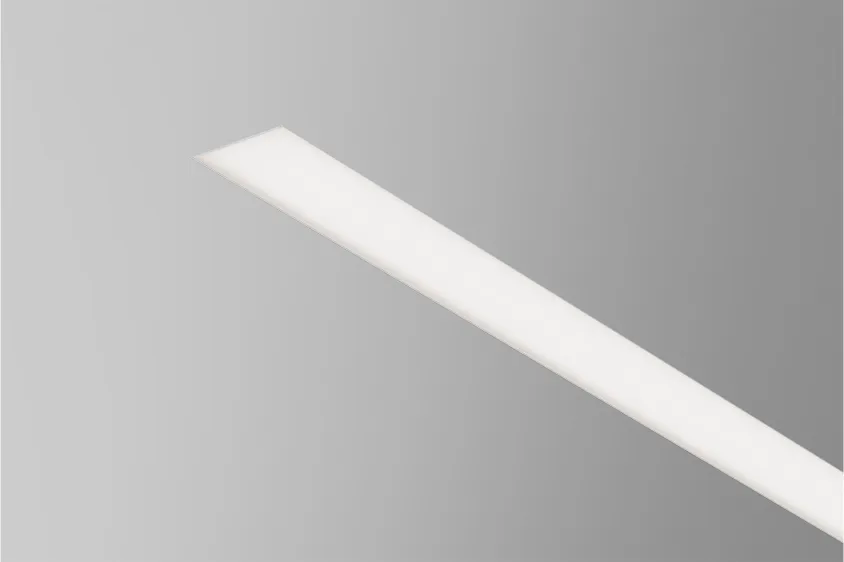

Flangeless Mud-in (CM)

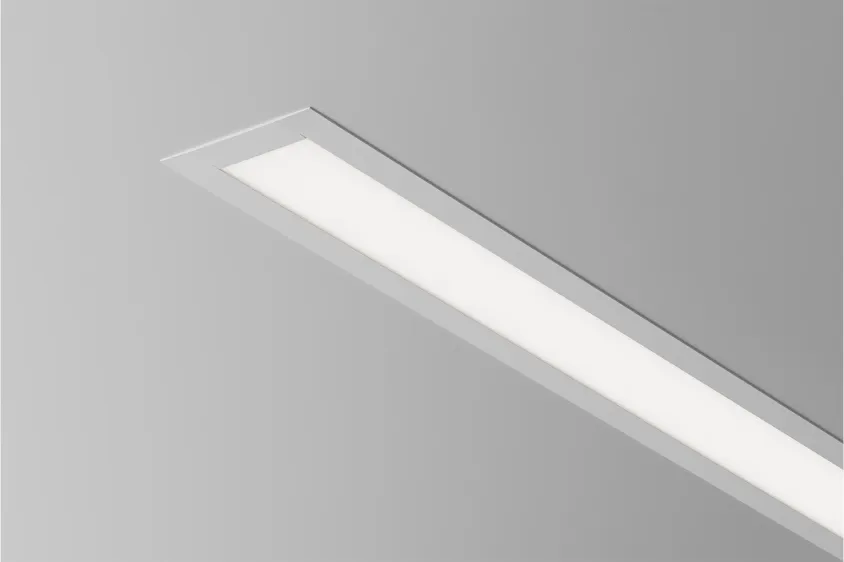

Exposed Flanged Trim (CT)
Performance Example
Interspace
1000 lm/ft (D)
80 CRI + 4000 K (8040)
NT2-SR-4-F-GR-FD-D-8040-E1-A-M
Delivered Lumens: 4365 lm
System Watts: 32 W
Efficacy: 137 lm/W
CRI: 84 (4000 k)
SC: 1.37
Explore more products

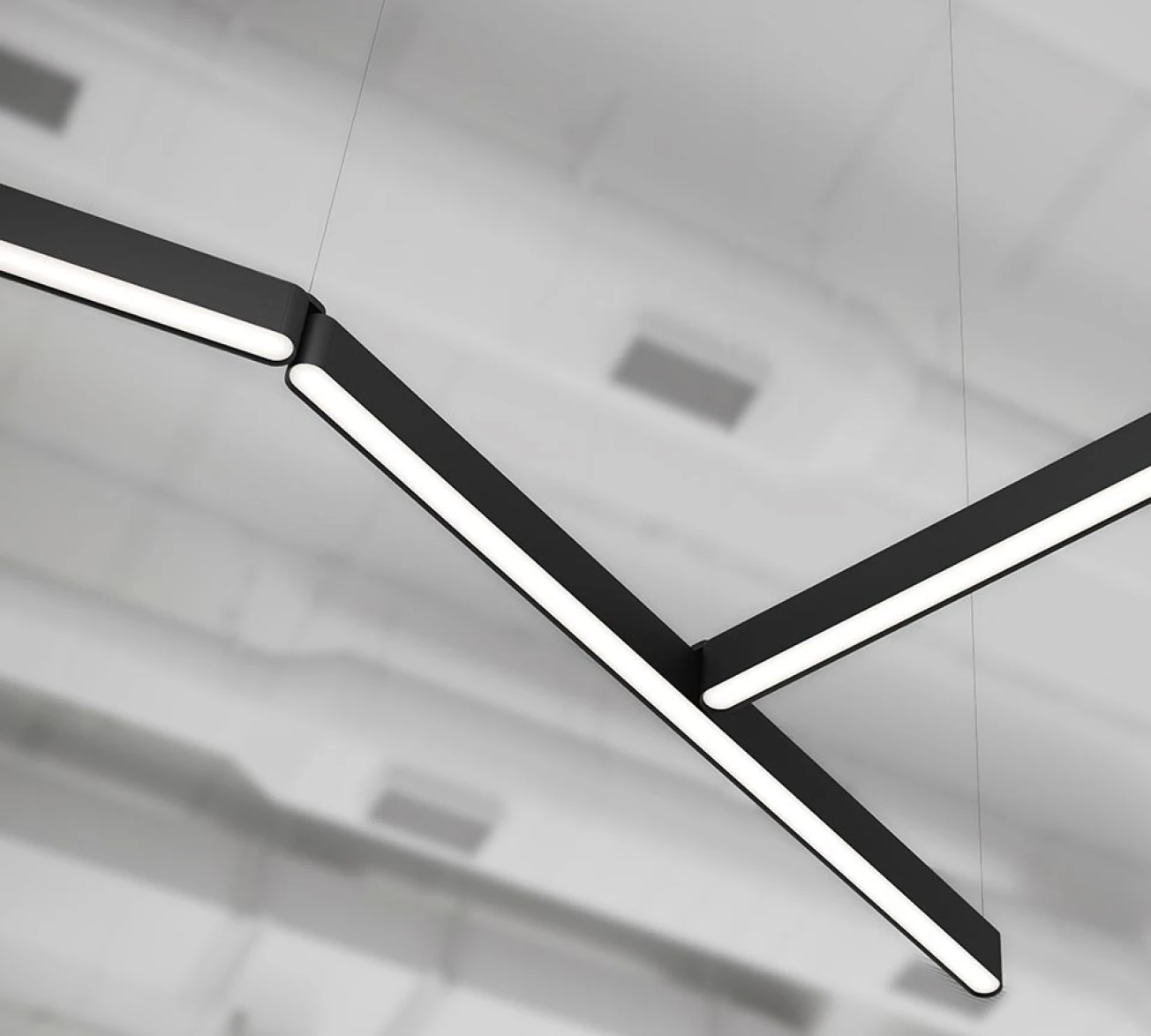

hyperlink
Suspend your imagination. Innovative linking, wiring and mounting systems enable unlimited design flexibility, easy installation and limitless configurability. Suspend, power and link at any point, any angle, anywhere.

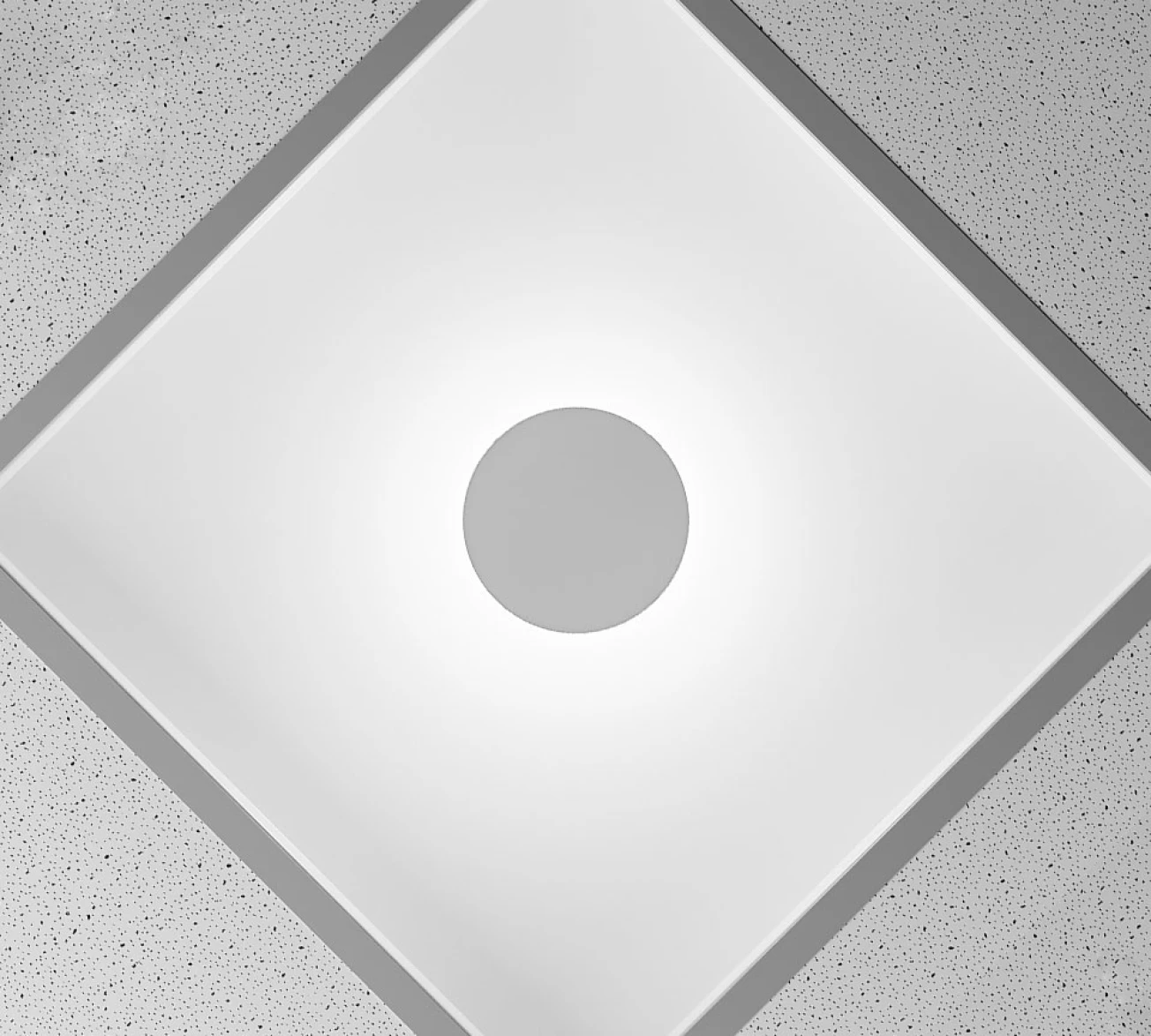

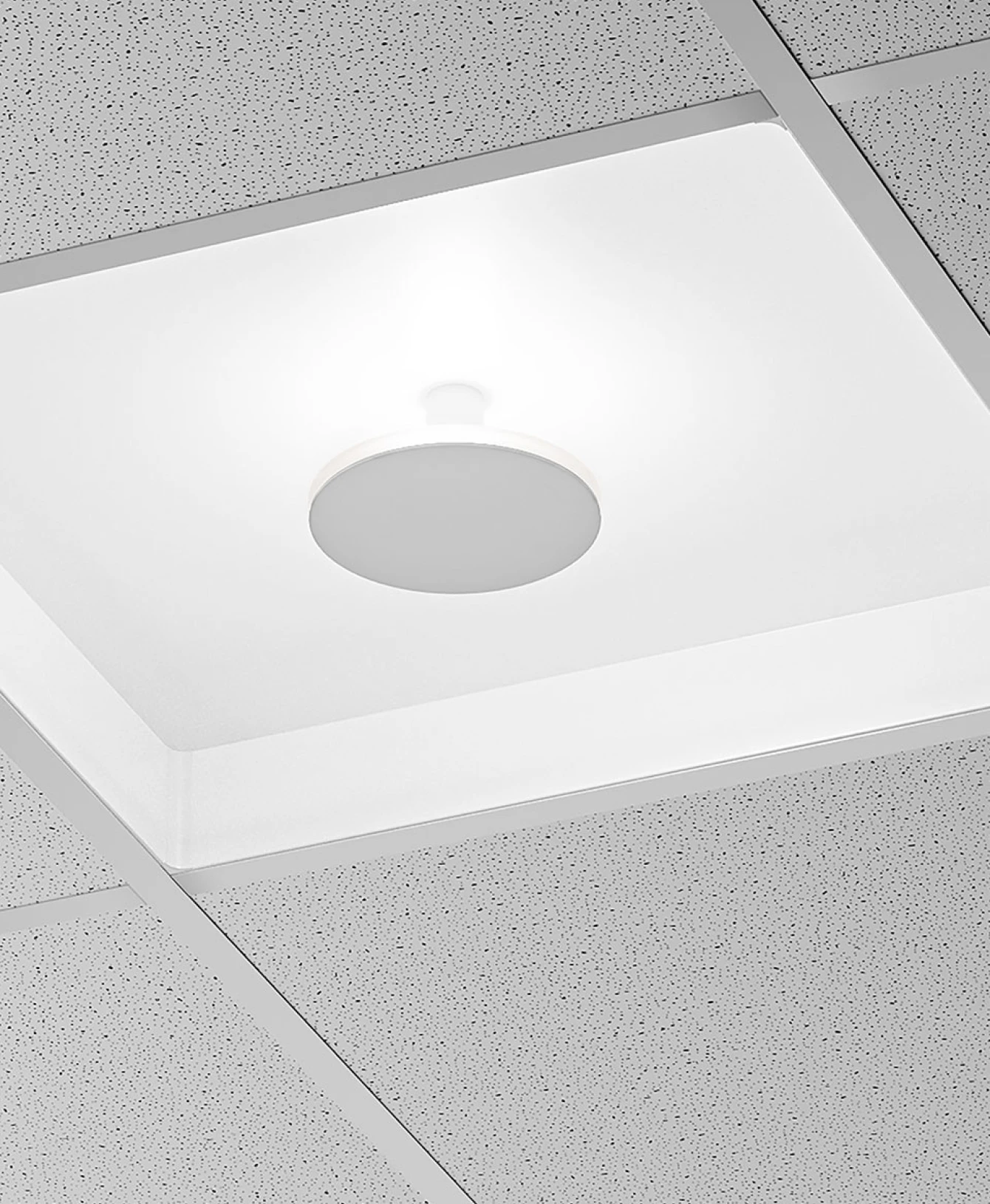

pointform
